Quadral Casa Speaker

Explore a new dimension of sound experience with our high-quality in-ceiling and in-wall speakers. Invisible yet powerful – our selection of seven specially designed models offers the perfect solution for any space and requirement. Each speaker has been meticulously crafted to ensure a seamless installation experience, from the mounting hardware for walls and ceilings to the brilliance of sound. Whether for home theater or audiophile room design, immerse yourself in the invisible luxury of premium sound that captivates your senses.

CI5 – CI6 – IW611 – IW621 – IWS641 – IWS841 – ICE6

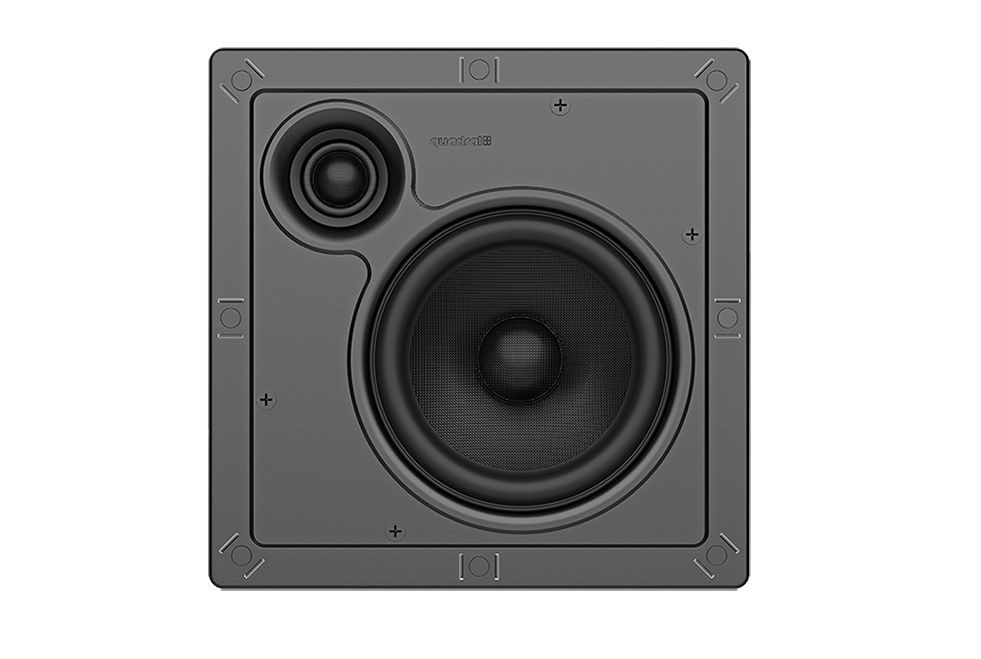

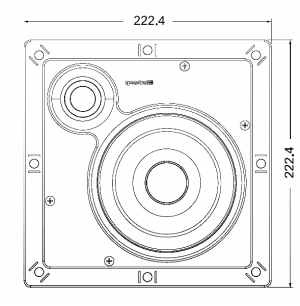

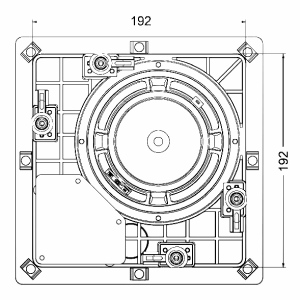

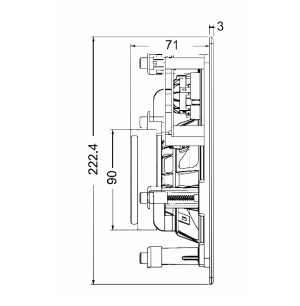

CI5

Dimensions

Dimensions: 226 × 226 × 76 mm

Installation depth: 71 mm

Mounting cutout: 194 × 194 mm

Weight: 1.9 kg

Technical Data
  • Type: 2-way
  • Nominal / Music power: 55/110 W
  • Frequency range: 70′-27’000 Hz
  • Crossover frequency: 3’000 Hz
  • Nominal impedance: 4 Ohm
  • Tweeter: ⌀ 22 mm, silk dome
  • Woofer: ⌀ 135 mm

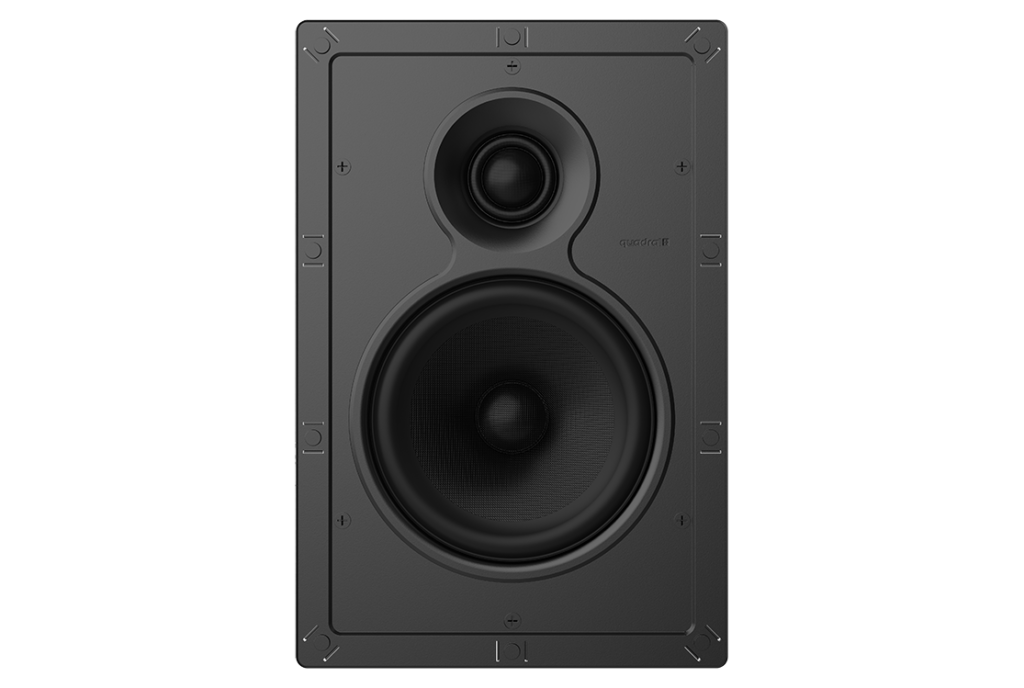

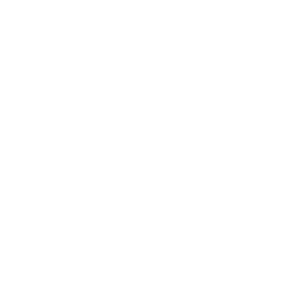

CI6

Dimensions

Dimensions: 332 x 222 x 85 mm

Installation depth: 80 mm

Mounting cutout: 303 x 193 mm

Weight: 2.33 kg

Technical Data
  • Type: 2-way
  • Nominal / Music power: 60/120 W
  • Frequency range: 65′-20’000 Hz
  • Crossover frequency: 2,800 Hz
  • Nominal impedance: 8 Ohm
  • Tweeter: ⌀ 30 mm, silk dome
  • Woofer: ⌀ 165 mm

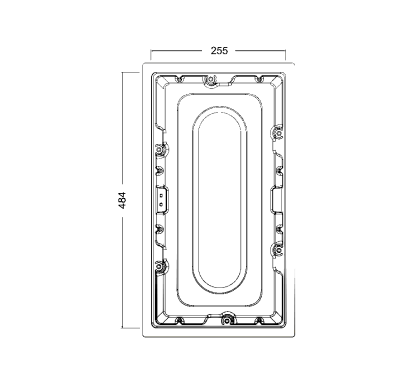

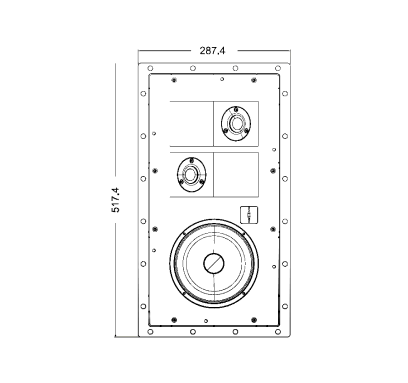

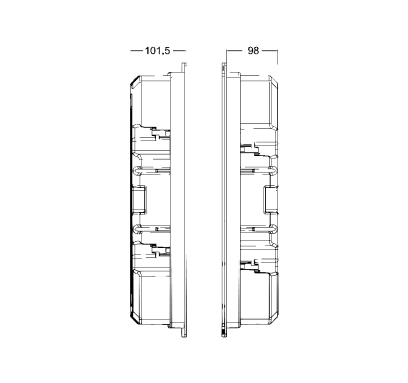

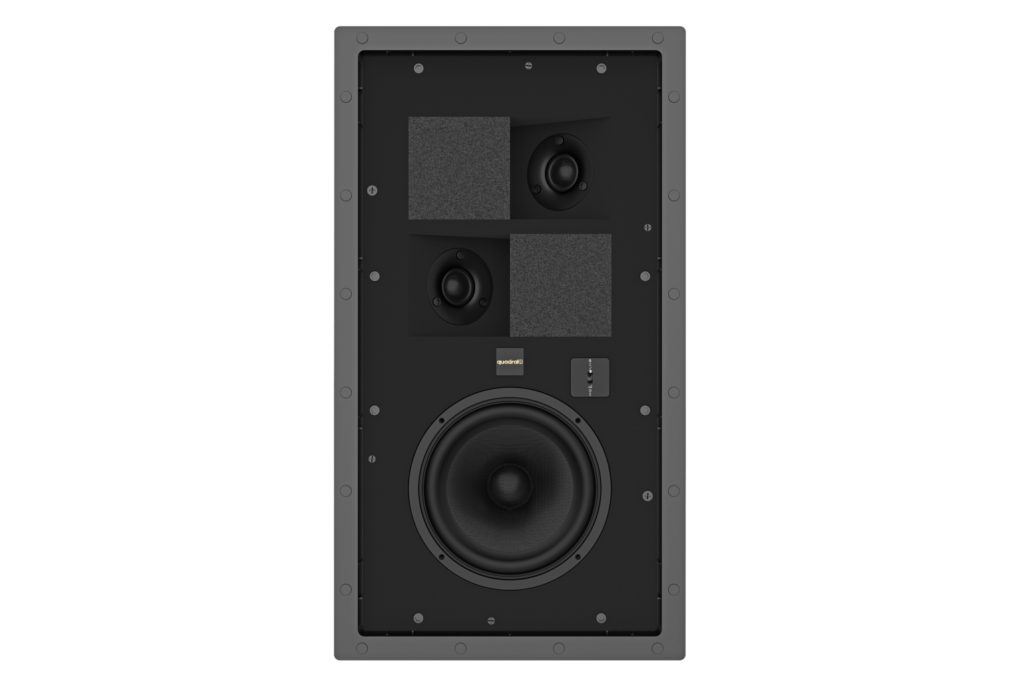

IW611

Dimensions

Dimensions: 519 x 289 x 104 mm

Installation depth: 98 mm

Mounting cutout: 486 × 255 mm

Weight: 4.7 kg

Technical Data
  • Type: 2-way
  • Nominal / Music power: 60/120 W
  • Frequency range: 65′-30’000 Hz
  • Crossover frequency: 2,300 Hz
  • SPL: 105 dB max
  • Nominal impedance: 4 Ohm
  • Tweeter: ⌀ 2x 22 mm, silk dome
  • Woofer: ⌀ 165 mm

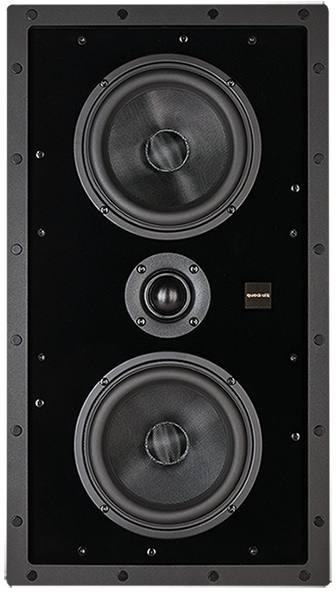

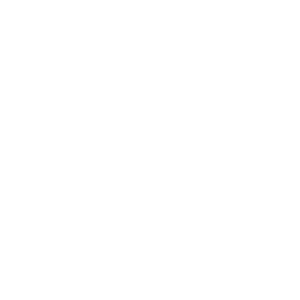

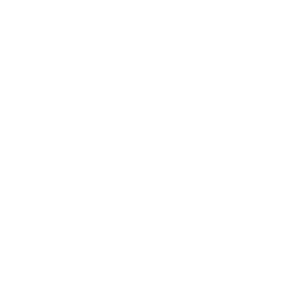

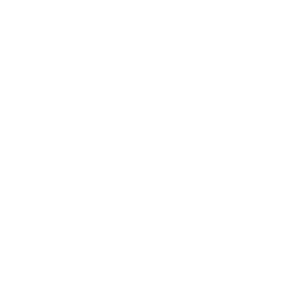

IW621

Dimensions

Dimensions: 519 x 289 x 104 mm

Installation depth: 98 mm

Mounting cutout: 486 x 255 mm

Weight: 5.2 kg

Technical Data
  • Type: 2-way
  • Nominal / Music power: 120/240 W
  • Frequency range: 65′-30’000 Hz
  • Crossover frequency: 2,300 Hz
  • SPL: 110 dB max
  • Nominal impedance: 4 Ohm
  • Tweeter: ⌀ 30 mm, silk dome
  • Woofer: ⌀ 2×165 mm

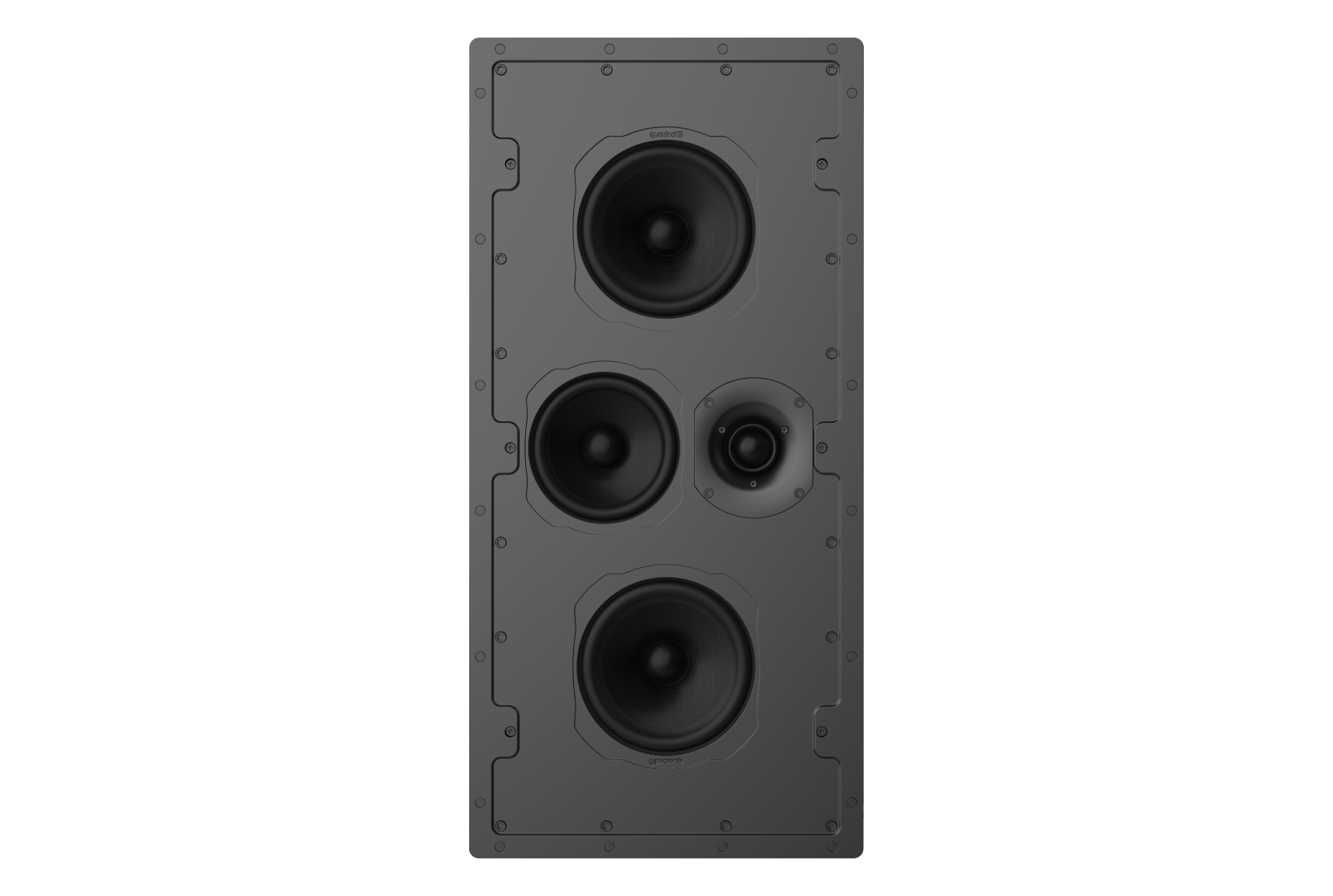

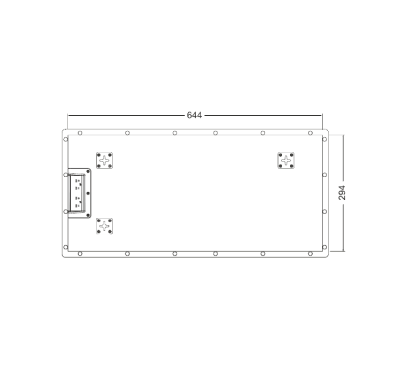

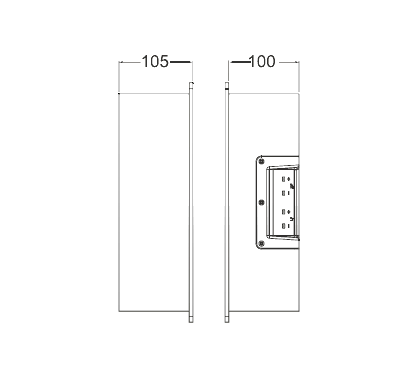

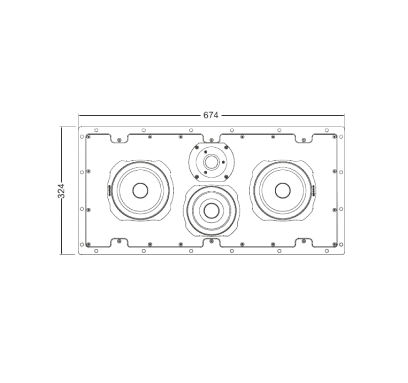

IWS641

Dimensions

Dimensions: 678.5 × 328.5 x 107 mm

Installation depth: 100 mm

Mounting cutout: 646 × 296 mm

Weight: 13.6 kg

Technical Data
  • Type: 3-way
  • Nominal / Music power: 150/300 W
  • Frequency range: 65′-30’000 Hz
  • Crossover frequency: 600/2,100 Hz
  • SPL: 112 dB max
  • Nominal impedance: 4 Ohm
  • Tweeter: ⌀ 30 mm, silk dome
  • Woofer: ⌀ 2x 165 mm

IWS841

Dimensions

Dimensions: 519 x 289 x 104 mm

Installation depth: 98 mm

Mounting cutout: 486 x 255 mm

Weight: 5.2 kg

Technical Data
  • Type: 3-way
  • Nominal / Music power: 120/240 W
  • Frequency range: 65′-30’000 Hz
  • Crossover frequency: 2’300 Hz
  • SPL: 110 dB max
  • Nominal impedance: 4 Ohm
  • Tweeter: ⌀ 30 mm, silk dome
  • Woofer: ⌀ 2×165 mm

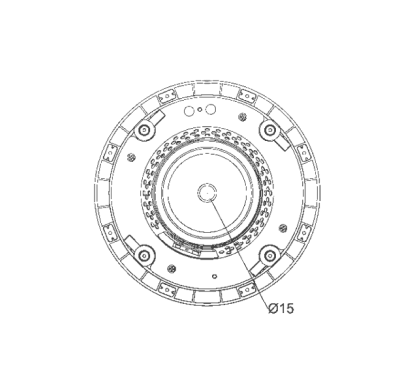

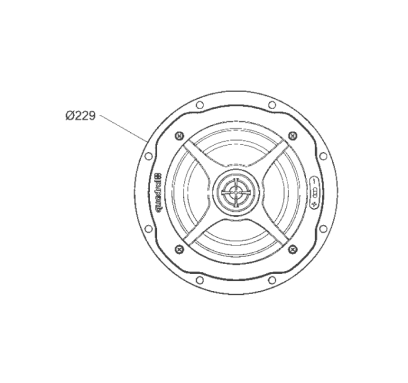

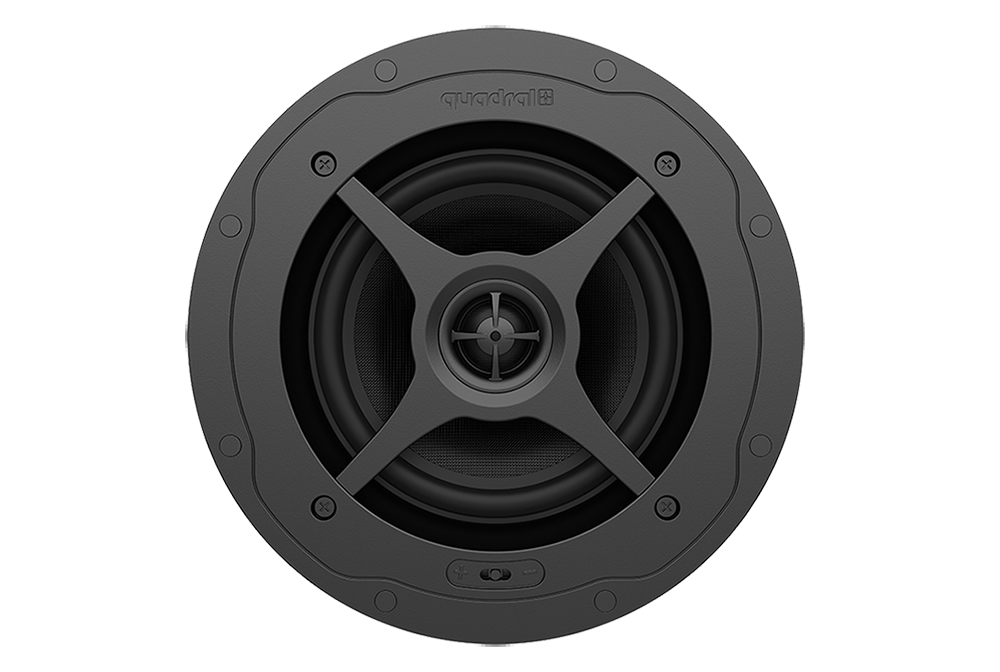

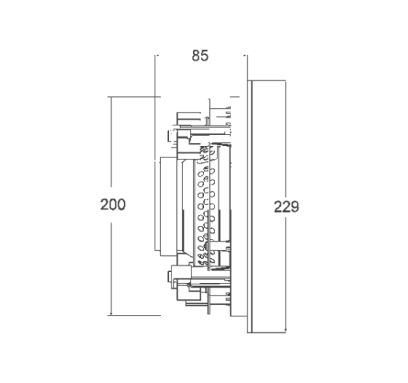

ICE6

Dimensions

Dimensions: 93 x @ 231 mm

Installation depth: 85 mm

Mounting cutout: ® 202 mm

Weight: 2.06 kg

Technical Data
  • Type: 2-way
  • Nominal / Music power: 40/80 W
  • Frequency range: 65′-22’000 Hz
  • Crossover frequency: 3,000 Hz
  • Nominal impedance: 8 Ohm
  • Tweeter: ⌀ 35 mm, silk dome
  • Woofer: ⌀ 165 mm
